. Features
1. Hi-velocity, Hi-precision, Low friction, Low heating, Low vibration
2. Possible exchange rpm in axis velocity
3. Lubrication System : Oil-Mist type, Oil-Air type, Greased type
4. ISO type, BT type, HSK type
5. ATC type, Collet type & Generals
6. Cooling System : Water Cooling type, Fan type, Air Pressure Circulation type
. Use
1. CNC Engraving Machine
2. Machining Center
3. Grinding Machine
4. Semiconductor Equipment(Dicing Machine,PCB Drilling)
5. Optical Lens & Drum Grinding
6. Parts Precision Grinding & processing

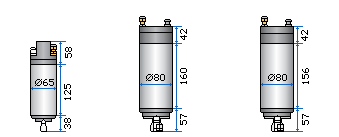

Model K-S K-SK K SK-1
Steel brg + greased min 45,000 24,000 24,000
Ceramic brg + greased min 60,000 35,000 35,000
Ceramic brg + Oil-Air Lubrication min 90,000 45,000 45,000
Power Kw 1.1 1.1 2.4
Voltage V 220 220 220, 380
Pole P 2 2 4
Tooling System SK6 SK10 SK10
Weight Kg 5 7 7
Tool change pressure bar
Torque Nm
Tool release
Encoder

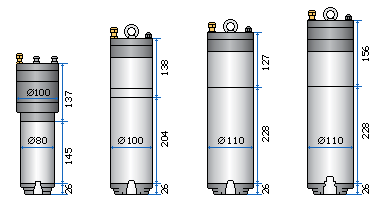

Model K-2 K-3 K-3-0 K-3-1
Steel brg + greased min 24,000 18,000 18,000 18,000
Ceramic brg + greased min 35,000 24,000 24,000 24,000
Ceramic brg + Oil-Air Lubrication min 45,000 35,000 35,000 35,000
Power Kw 2.4 5.5 3.2 5.5/7.5/11.2
Voltage V 220,380 220,380 220 220,380
Pole P 4 4 2 4
Tooling System ISO 20,
HSK25E		 BT 30,
HSK32E		 BT 30,
HSK32E		 BT 30,
HSK40E
Weight Kg 10 16 17 22
Tool change pressure bar 5 5 5 5
Torque Nm
Tool release AIR AIR AIR AIR
Encoder Pulse

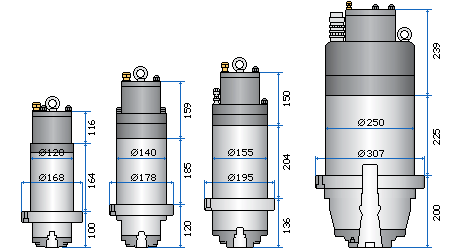

Model K-3-2 K-3-3 K-4 K-5
Steel brg + greased min 18,000 15,000 12,000 10,000
Ceramic brg + greased min 24,000 18,000 16,000 12,000
Ceramic brg + Oil-Air Lubrication min 30,000 24,000 20,000 15,000
Power Kw 11.2 15.2 15.2 31
Voltage V 380 380 380 380
Pole P 4 4 4 4
Tooling System BT 30,
HSK 40E		 BT 30,
HSK 40E		 BT 40,
HSK 50E		 BT 50
Weight Kg 25 45 47 150
Tool change pressure bar 30 35 40 50
Torque Nm
Tool release HY(Booster)
Encoder Pulse
