| MODEL |
|
KB-3 |
KB-3-T |
KB-3-1 |
KB-3-1-T |
| Steel brg + greased |
min-1 |
|
|
|
|
| Ceramic brg + greased |
min-1 |
25,000 |
24,000 |
25,000 |
24,000 |
| Ceramic brg + Oil-Air Lubrication |
min-1 |
30,000 |
|
30,000 |
|

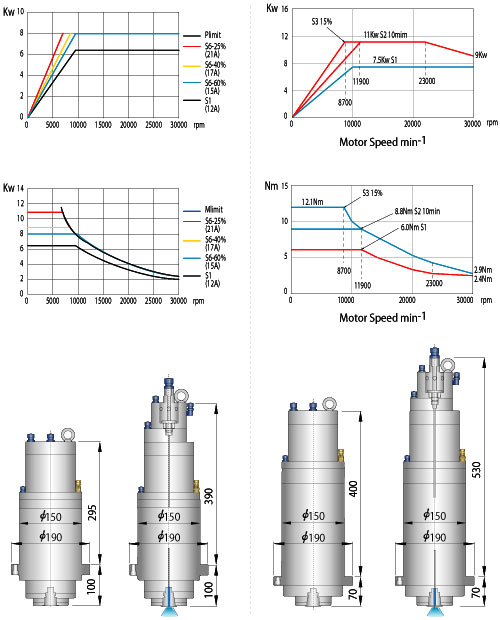

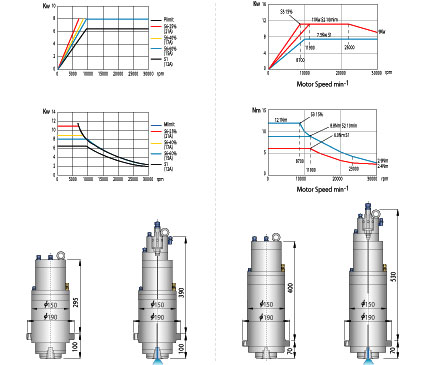

| Power |
Kw |
6.5 |
6.5 |
9.0 |
9.0 |
| Voltage |
V |
380 |
380 |
220 |
220 |
| Pole |
P |
0 |
0 |
|
|
| Tooling System |
|
BT30,HSK40A |
BT30,HSK40A |
BT30,HSK40A |
BT30,HSK40A |
| Weight |
Kg |
0 |
0 |
|
|
| Tool change pressure |
Kg/㎠ |
50 |
50 |
|
|
| Torque |
Nm |
6.5Nm |
6.5Nm |
|
|
| Tool release |
|
HY(Booster) |
HY(Booster) |
HY(Booster) |
HY(Booster) |
| Encoder |
Pulse |
Resolver |
Resolver |
Resolver |
Resolver |
| Internal Coolant Supply |
|
|
TSC Type |
|
TSC Type |
| Application |
|
금형가공
고속가공
Tapping가공 |
금형가공
고속가공
Tapping가공 |
금형가공
고속가공
Tapping가공 |
금형가공
고속가공
Tapping가공 |
|
