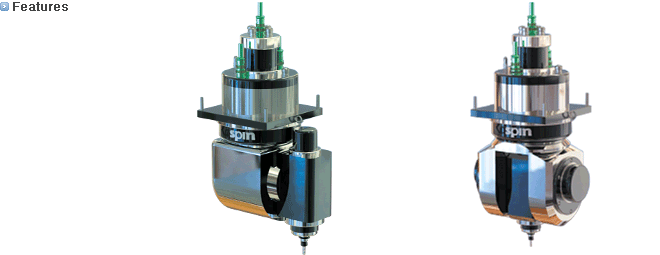

| Home > Product > Universal Head Spindle |
|
|
| MODEL |
|
K-BUH-S |
K-BUH-S1 |
K-BUH-S2 |
| Head |
|
C-Axis |
A-Axis
Orthogonal |
C-Axis |
A-Axis
Orthogonal |
C-Axis |
A-Axis
Orthogona |
| Ceramic brg + greased |
min-1 |
24,000 |
24,000 |
24,000 |
| Power |
Kw |
15.2 / 22 |
15.2 / 22 |
15.2 / 22 |
| Voltage |
V |
380 |
380 |
380 |
| Pole |
P |
4 |
4 |
4 |
| Tooling System |
|
BT30/BT40/HSKE40/E50 |
BT30/BT40/HSKE40/E50 |
BT30/BT40/HSKE40/E50 |
| Torque Max. |
Nm |
600 |
600 |
600 |
115 |
600 |
230 |
| Clamping Torque |
Nm |
2,000(60bar) |
2,000(60bar) |
1,000(50bar) |
5,00(50bar) |
1,000(50bar) |
5,00(50bar) |
| Swivel Speed |
° / s |
360 |
360 |
360 |
360 |
360 |
360 |
| Swivel Angle |
° |
±360 |
±110 |
±360 |
±110 |
±360 |
±110 |
| Voltage / Current |
V / A |
400 / 14 |
400 / 14 |
400 / 14 |
400 / 14 |
400 / 14 |
400 / 28 |
| Cooling System |
|
Water |
Water |
Water |
| Measuring System |
|
Inkremental |
absolut |
Inkremental |
absolut |
Inkremental |
absolut |
| Position Accuracy |
° |
0.002° |
0.002° |
0.002° |
0.003° |
0.002° |
0.003° |
| Weight |
㎏ |
250 |
180 |
180 |
| Application |
|
|
|
|
|
|
|
|
