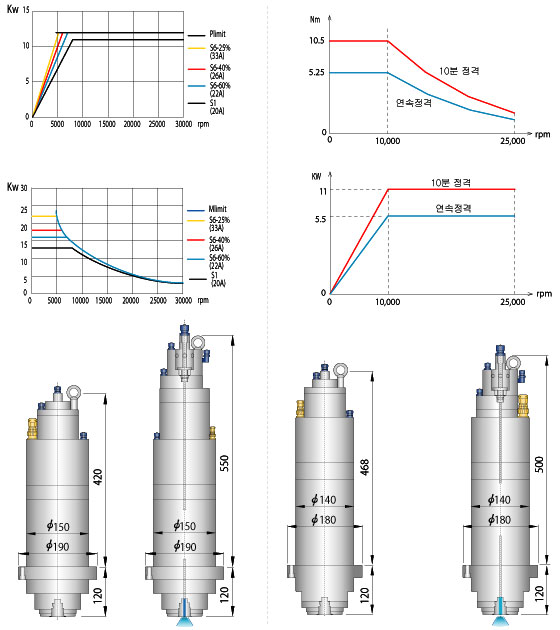

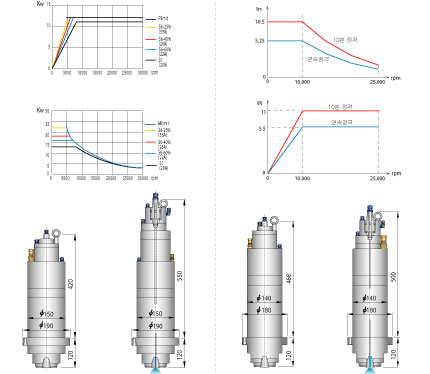

MODEL |
|
KB-3-2 |
KB-3-2-T |
KB-3-3 |
KB-3-3-T |
Steel brg + greased |
min-1 |
18,000 |
18,000 |
18,000 |
18,000 |
Ceramic brg + greased |
min-1 |
25,000 |
25,000 |
25,000 |
25,000 |
Ceramic brg + Oil-Air Lubrication |
min-1 |
30,000 |
30,000 |
|
|
Power |
Kw |
11 |
11 |
11/5.5 |
11/5.5 |
Voltage |
V |
380 |
380 |
220 |
220 |
Pole |
P |
4 |
4 |
4 |
4 |
Tooling System |
|
BT30,HSK40A |
BT30,HSK40A |
BT30,HSK40A |
BT30,HSK40A |
Weight |
Kg |
0 |
0 |
95 |
95 |
Tool change pressure |
Kg/§² |
50 |
50 |
50 |
50 |
Torque |
Nm |
13Nm |
13Nm |
¿¬¼ÓÁ¤°Ý 5.25Nm 10ºÐÁ¤°Ý10.5Nm |
¿¬¼ÓÁ¤°Ý 5.25Nm 10ºÐÁ¤°Ý10.5Nm |
Tool release |
|
HY(Booster) |
HY(Booster) |
HY(Booster) |
HY(Booster) |
Encoder |
Pulse |
Resolver |
Resolver |
Encoder |
Encoder |
Internal Coolant Supply |
|
|
TSC Type |
|
TSC Type |
Application |
|
±ÝÇü°¡°ø °í¼Ó°¡°ø Tapping°¡°ø |
±ÝÇü°¡°ø °í¼Ó°¡°ø Tapping°¡°ø |
±ÝÇü°¡°ø °í¼Ó°¡°ø Tapping°¡°ø |
±ÝÇü°¡°ø °í¼Ó°¡°ø Tapping°¡°ø |
|
