| Home > Product > BLDC Spindle |
|
|

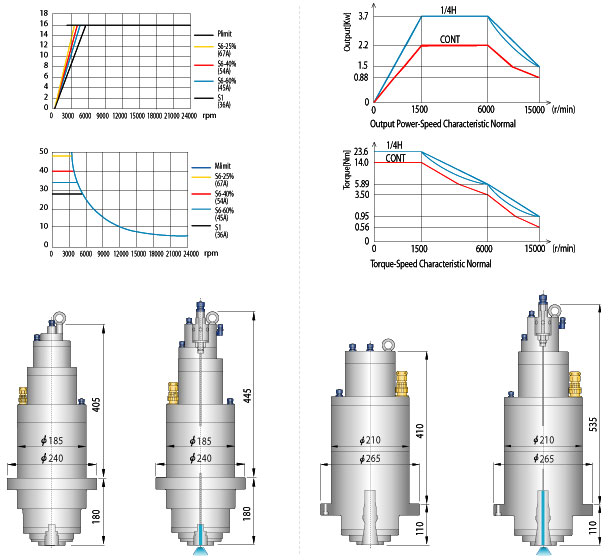

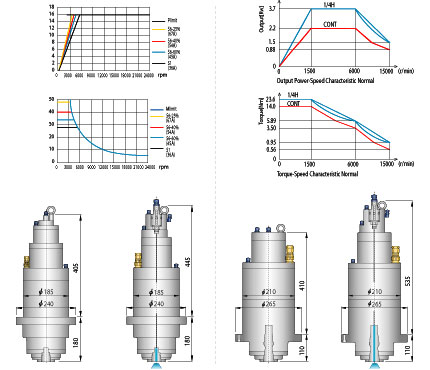

| MODEL |
|
KB-4-1 |
KB-4-1-T |
KB-4-2 |
KB-4-2-T |
| Steel brg + greased |
min-1 |
13,000 |
13,000 |
13,000 |
13,000 |
| Ceramic brg + greased |
min-1 |
18,000 |
18,000 |
15,000 |
15,000 |
| Ceramic brg + Oil-Air Lubrication |
min-1 |
24,000 |
24,000 |
|
|
| Power |
Kw |
10/8.5 |
10/8.5 |
3.7 |
3.7 |
| Voltage |
V |
380 |
380 |
220 |
220 |
| Pole |
P |
4 |
4 |
4 |
4 |
| Tooling System |
|
BT40,HSK50A |
BT40,HSK50A |
BT30/BT40,HSK40A |
BT30/BT40,HSK40A |
| Weight |
Kg |
0 |
0 |
110 |
110 |
| Tool change pressure |
Kg/㎠ |
50 |
50 |
50 |
50 |
| Torque |
Nm |
28Nm |
28Nm |
23.6 |
23.6 |
| Tool release |
|
HY(Booster) |
HY(Booster) |
HY(Booster) |
HY(Booster) |
| Encoder |
Pulse |
Resolver |
Resolver |
Encoder |
Encoder |
| Internal Coolant Supply |
|
|
TSC Type |
|
TSC Type |
| Application |
|
금형가공
고속가공
Tapping가공 |
금형가공
고속가공
Tapping가공 |
금형가공
고속가공
Tapping가공 |
금형가공
고속가공
Tapping가공
|
|

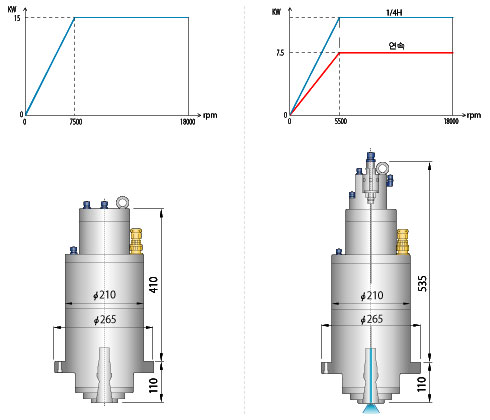

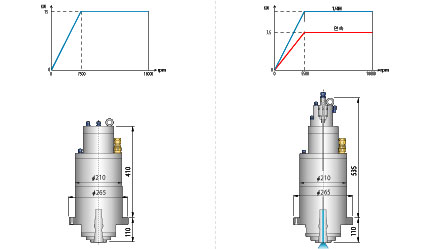

| MODEL |
|
KB-4-3 |
KB-4-3-T |
| Steel brg + greased |
min-1 |
13,000 |
13,000 |
| Ceramic brg + greased |
min-1 |
18,000 |
18,000 |
| Ceramic brg + Oil-Air Lubrication |
min-1 |
24,000 |
24,000 |
| Power |
Kw |
11/7.5 |
11/7.5 |
| Voltage |
V |
220 |
220 |
| Pole |
P |
4 |
4 |
| Tooling System |
|
BT40,HSK50A |
BT40,HSK50A |
| Weight |
Kg |
110 |
110 |
| Tool change pressure |
Kg/㎠ |
50 |
50 |
| Torque |
Nm |
연속정격 14.3Nm
10분정격21Nm |
연속정격 14.3Nm
10분정격21Nm |
| Tool release |
|
HY(Booster) |
HY(Booster) |
| Encoder |
Pulse |
Encoder |
Encoder |
| Internal Coolant Supply |
|
|
TSC Type |
| Application |
|
금형가공, 고속가공, Tapping가공 |
금형가공, 고속가공, Tapping가공 |
|
